Nickel 201 Alloy Wire UNS N02201 ASTM B160 B162

Name: Nickel 201 Alloy Wire UNS N02201 ASTM B160 B162
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: nikel 200
Price: 37.00 USD
Availability: InStock

Ürün Detayları

Menşe yeri: Çin

Marka adı: Tankii

Sertifika: -

Model numarası: nikel 200

Belge: Tankii Alloy Catalog.pdf

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 20kg

Fiyat: 35-40USD/Kg

Ambalaj bilgileri: DAVA

Teslim süresi: 10-15 gün

Ödeme koşulları: T/T

Yetenek temini: 50000kg/Ay

En İyi Fiyatı Alın

Şimdi İletişime Geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                            Nickel 201 alloy wire UNS N02201, ASTM B160 nickel alloy wire, copper nickel alloy wire B162


Üretim kapasitesi:	50000kg/Ay	Moq:	20kgs
Spesifikasyon:	nikel 201	Köken:	Çin
Tip:	Nikel Base Superalloy

Üretim kapasitesi:	50000kg/Ay
Moq:	20kgs
Spesifikasyon:	nikel 201
Köken:	Çin
Tip:	Nikel Base Superalloy

Açıklama

Nickel 201 Alloy Wire UNS N02201 ASTM B160 B162

Product Specifications

Attribute	Value
Production Capacity	50000kg/Month
MOQ	20kgs
Specification	Nickel 201
Origin	China
Type	Nickel base superalloy

Nickel 200/201 Alloy Overview

Nickel Alloy 201 (UNS N02201) is a commercially pure wrought nickel with excellent mechanical properties and superior resistance to many corrosive agents. The low carbon content (0.02% max) makes Nickel 201 particularly suitable for high-temperature applications above 315°C.

Key Applications

Food processing equipment
Chemical shipping drums and piping
Caustic handling equipment
Electronic components
Aerospace and missile components
Magnetostrictive devices
Chemical process industry reactors and heat exchangers
Pharmaceutical industry reactors and dryers
Flue gas desulfurization systems

Standards Compliance

Chemical Composition

Weight%	Ni	Cu	Fe	Mn	C	Si	S
Nickel Alloy 200	99.0 min	0.25 max	0.40 max	0.35 max	0.15 max	0.35 max	0.01 max
Nickel Alloy 201	99.0 min	0.25 max	0.40 max	0.35 max	0.02 max	0.35 max	0.01 max

Mechanical Properties

Material	Tensile Strength	Yield Strength (0.2% Offset)	Elongation in 2" (%)	Hardness
Nickel 200	55-75 ksi 380-520 MPa	15-30 ksi 105-210 MPa	55-40	90-120 Brinnell 45-70 Rockwell B
Nickel 201	55-75 ksi 380-520 MPa	15-30 ksi 105-210 MPa	55-40	90-120 Brinnell 45-70 Rockwell B

Available Sizes and Specifications

Product Form	Dimensions
Nickel plate	Thickness: 0.3mm - 150.0mm Width: 1000mm - 3000mm
Nickel strip/foil	Thickness: 0.02mm - 16.0mm Width: 5mm - 3000mm
Nickel coil	Thickness: 0.3mm - 16.0mm Width: 1000mm - 3000mm
Nickel pipe	OD: 6mm - 1219mm Thickness: 0.5mm - 100mm
Nickel capillary pipe	OD: 0.5mm - 6.0mm Thickness: 0.05mm - 2.0mm
Nickel bar	Diameter: Ф4mm - Ф600mm
Nickel wire rod	Diameter: Ф0.01mm - Ф6mm

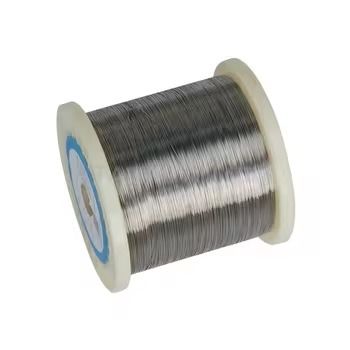

Product Images
