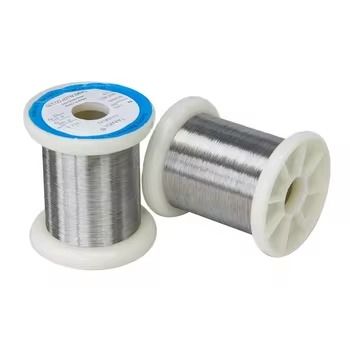

Ni80Cr20 Nichrome Wire 0.02mm 1200℃ Max Temp Resistor Heater

Name: Ni80Cr20 Nichrome Wire 0.02mm 1200℃ Max Temp Resistor Heater
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 35.00 USD
Availability: InStock

Ürün Detayları

Marka adı: Tankii

Sertifika: ISO9001

Model numarası: Ni80Cr20

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 10kgs

Fiyat: Negotiated

Ambalaj bilgileri: Ahşap kutu veya karton ambalaj

Teslim süresi: 20 gün

Ödeme koşulları: T/T, Western Union

Yetenek temini: Yılda 2000 Ton

En İyi Fiyatı Alın

Şimdi İletişime Geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Ni80Cr20 nichrome wire resistor heater, 0.02mm nichrome wire high temp, NiCr alloy wire 1200℃ max


İsim:	Cr20Ni80	Uygulama aralığı:	Direnç, ısıtıcı
Uzama:	% 30	Maksimum çalışma sıcaklığı:	1200°C
Erime noktası:	1400°C	Elektrik direnci:	1.09 ohm mm2/m
Yoğunluk:	8,3 g/cm3	HS kodu:	7505220000

İsim:	Cr20Ni80
Uygulama aralığı:	Direnç, ısıtıcı
Uzama:	% 30
Maksimum çalışma sıcaklığı:	1200°C
Erime noktası:	1400°C
Elektrik direnci:	1.09 ohm mm2/m
Yoğunluk:	8,3 g/cm3
HS kodu:	7505220000

Açıklama

Ni80Cr20 Nichrome Wire 0.02mm 1200℃ Max Temp Resistor Heater

High Quality Nickel Chromium Alloy 0.02mm Ni80Cr20 Wire Nichrome Wire

Product Specifications

Name	Cr20Ni80
Range of Application	Resistor, Heater
Elongation	30%
Max Working Temperature	1200℃
Melting Point	1400℃
Electrical Resistivity	1.09 ohm mm²/m
Density	8.3 g/cm³
HS Code	7505220000

Product Description

Nichrome Rod/Nichrome Wire (NiCr 80/20) with chemical composition of Nickel 80% and Chrome 20%.

Available Forms & Dimensions

Condition: Bright/Acid white/Oxidized Color
Nichrome Round Wire: Diameter 0.018mm~10mm
Nichrome Ribbon: Width 5~0.5mm, thickness 0.01-2mm
Nichrome Strip: Width 450mm~1mm, thickness 0.001m~7mm
Diameter: 1.5mm-8mm packing in coil, 8~60mm in rod

Available Grades

Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20, Ni80, Ni70, Ni60, Ni40

Key Characteristics

Excellent plasticity when cold
Stable performance with anti-oxidation properties
Corrosion resistance and high temperature stability
Excellent coil-forming ability
Uniform and beautiful surface condition without spots

Applications

Resistance heating elements
Material in metallurgy
Household appliances
Mechanical manufacturing
Various industrial applications

Production Standards

ASTM B603, DIN 17470, JIS C2520, GB/T1234

Our Advantages

High quality materials, short delivery time, and small minimum order quantities.

Chemical Composition and Properties Comparison

Properties Grade	NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition Ni	Balance	Balance	55.0-61.0	34.0-37.0	30.0-34.0
Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
Fe	≤ 1.0	≤ 1.0	Balance	Balance	Balance
Max Continuous Service Temperature(℃)	1200	1250	1150	1100	1100
Resistivity 20℃ (Ω mm²/m)	1.09	1.18	1.12	1.04	1.04
Density (g/cm³)	8.4	8.1	8.2	7.9	7.9
Thermal Conductivity (KJ/m·h·℃)	60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion (α × 10⁻⁶/℃)	18	17	17	19	19
Melting Point (℃)	1400	1380	1390	1390	1390
Elongation (%)	> 20	> 20	> 20	> 20	> 20
Micrographic Structure	austenite	austenite	austenite	austenite	austenite
Magnetic Property	nonmagnetic	nonmagnetic	nonmagnetic	Weak magnetic	Weak magnetic
