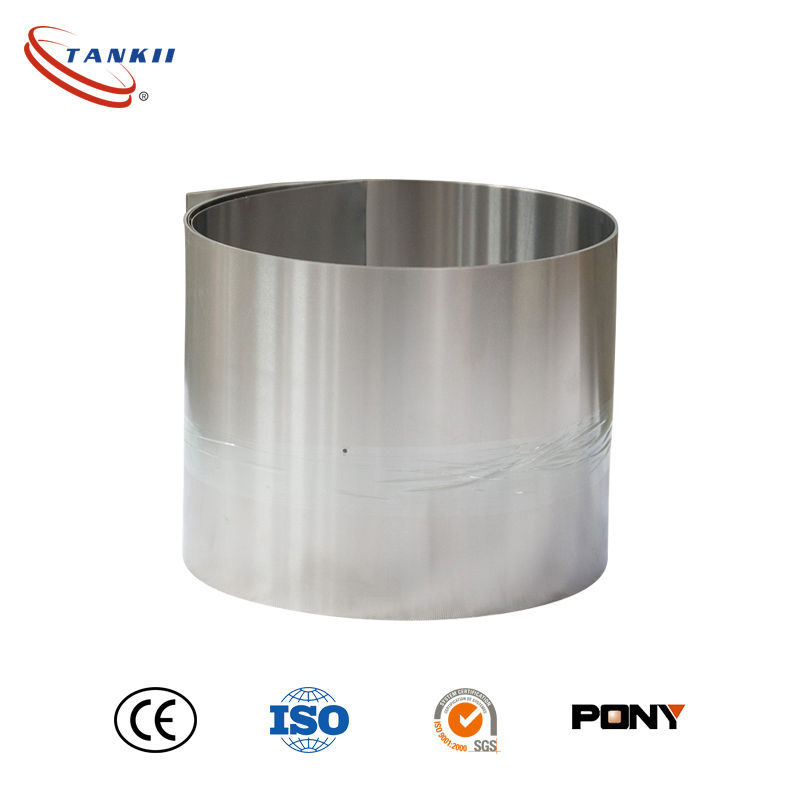

Ni80Cr20 Nichrome Strip 1mm-300mm Width 1200℃ Max Temp

Name: Ni80Cr20 Nichrome Strip 1mm-300mm Width 1200℃ Max Temp
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 35.00 USD
Availability: InStock

Ürün Detayları

Menşe yeri: Çin

Marka adı: Tankii

Sertifika: ISO9001

Model numarası: Ni80Cr20

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 100kgs

Fiyat: Nigotiated

Ambalaj bilgileri: Ahşap kutu veya karton ambalaj

Teslim süresi: 20 gün

Ödeme koşulları: T/T, Western Union

Yetenek temini: Yılda 2000 Ton

En İyi Fiyatı Alın

Şimdi İletişime Geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Ni80Cr20 Nichrome strip high temperature, Nichrome strip 1mm width heat resistant, Copper nickel alloy strip 1200℃ max


Malzeme:	Ni80Cr20	Yüzey:	parlak, yağ yok
Maksimum çalışma sıcaklığı:	1200°C	Erime noktası:	1400°C
Yoğunluk:	8.4g/cm³	Spesifikasyon:	W (1mm-300mm)*T (0.01mm ~ 7mm)
Ürün türü:	şerit	HS kodu:	7506200000

Malzeme:	Ni80Cr20
Yüzey:	parlak, yağ yok
Maksimum çalışma sıcaklığı:	1200°C
Erime noktası:	1400°C
Yoğunluk:	8.4g/cm³
Spesifikasyon:	W (1mm-300mm)*T (0.01mm ~ 7mm)
Ürün türü:	şerit
HS kodu:	7506200000

Açıklama

Ni80Cr20 Nichrome Strip 1mm-300mm Width 1200℃ Max Temp

Nickel Chromium Alloy Ni80Cr20 Strip Nichrome Cr20Ni80 Tape

Product Specifications

Attribute	Value
Material	Ni80Cr20
Surface	Bright, no oil
Max working temperature	1200℃
Melting Point	1400℃
Density	8.4g/cm³
Specification	W(1mm-300mm)*T(0.01mm~7mm)
Product Type	Strip
HS Code	7506200000

Product Description

Nichrome Tape (Nickel Chromium Resistance Tape) is a high-performance alloy strip designed for demanding industrial applications.

Applications

Rocketry or pyrotechnic igniters
Electric matches and foam cutting
Heating elements and release mechanisms
Ceramics manufacturing
Laboratory equipment
Various industrial heating applications

Available in strip thickness from 0.01mm minimum to 7mm, with widths up to 450mm.

Material composition: 80% nickel, 20% chromium (Ni80Cr20).

Available in oxidized green color finish.

Complies with ASTM B267 and ASTM B344 standards.

Chemical Composition and Properties

Properties Grade	NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition	Ni: Balance Cr: 20.0-23.0 Fe: ≤1.0	Ni: Balance Cr: 28.0-31.0 Fe: ≤1.0	Ni: 55.0-61.0 Cr: 15.0-18.0 Fe: Balance	Ni: 34.0-37.0 Cr: 18.0-21.0 Fe: Balance	Ni: 30.0-34.0 Cr: 18.0-21.0 Fe: Balance
Max Continuous Service Temperature (°C)	1200	1250	1150	1100	1100
Resistivity 20°C (Ωmm²/m)	1.09	1.18	1.12	1.04	1.04
Density (g/cm³)	8.4	8.1	8.2	7.9	7.9
Thermal Conductivity (KJ/m·h·°C)	60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion (α×10⁻⁶/°C)	18	17	17	19	19
Melting Point (°C)	1400	1380	1390	1390	1390
Elongation (%)	>20	>20	>20	>20	>20
Micrographic Structure	Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic Property	Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic
