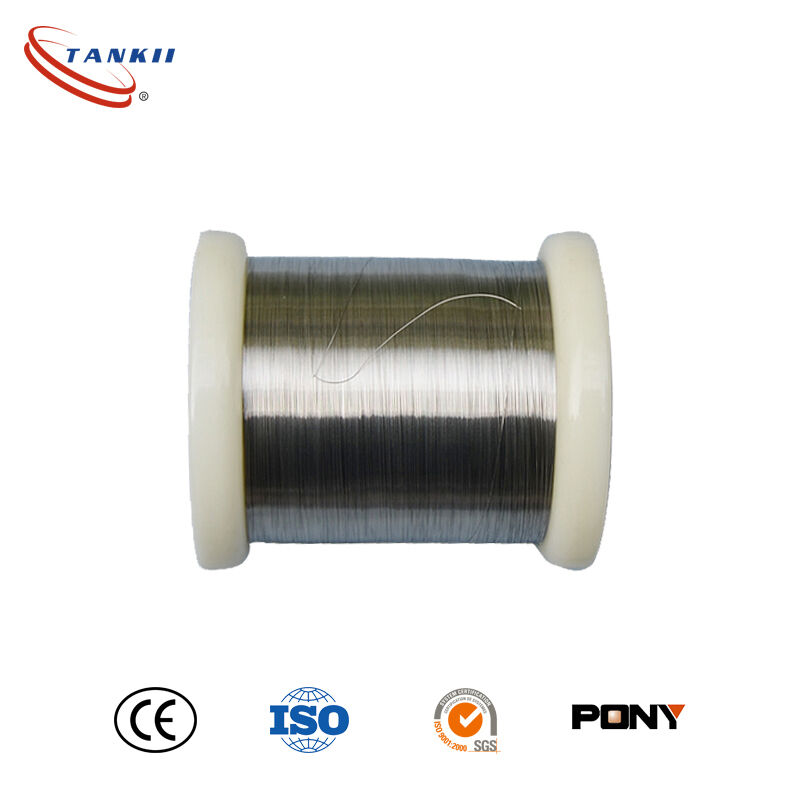

Pure Nickel Wire Diameter 0.025mm 99.99% Solid Pure Nickel Wire For Industry

Name: Pure Nickel Wire Diameter 0.025mm 99.99% Solid Pure Nickel Wire For Industry
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: saf nikel tel
Price: 28.00 USD
Availability: InStock

Ürün Detayları

Menşe yeri: Çin

Marka adı: Tankii

Sertifika: ISO9001

Model numarası: saf nikel tel

Belge: Tankii Alloy Catalog.pdf

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 10 kg

Fiyat: 26-30USD/Kg

Ambalaj bilgileri: Dava

Teslim süresi: 15-25gün

Ödeme koşulları: T/T, D/P, D/A, L/C, Western Union

Yetenek temini: 2000KG/Ay

En İyi Fiyatı Alın

Şimdi İletişime Geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:

Örnek:	Özgür	Çap:	0.025mm
Yüzey:	parlak	Durum:	Yumuşak 1/4H 1/2H Zor
uzama:	% 35	Yoğunluk:	8,89 gr/cm3

Örnek:	Özgür
Çap:	0.025mm
Yüzey:	parlak
Durum:	Yumuşak 1/4H 1/2H Zor
uzama:	% 35
Yoğunluk:	8,89 gr/cm3

Açıklama

Pure Nickel Wire Diameter 0.025mm 99.99% Solid Pure Nickel Wire For Industry

Grade:Ni200,Ni201,N4,N6
High ductility
Excellent corrosion resistance
good mechanical strength

Nickel foil and nickel strip for battery

Pure nickel grade: Ni200,Ni201, N4,N6

Alloy Description

Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.

Condition of Supply

Nickel 200, 201 and 205 are supplied in the following conditions:
Cold Drawn, Special Temper.
Cold Drawn, Annealed. Straightened and Cut Lengths.
Note:

NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).

NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).

Forms

Coil - Strip, Foil, Ribbon
Wire - Profile, Round, Flat, Square
rod, bar, forgings, plate, sheet

Chemical composition

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	0.015	0.03	0.002	0.01	0.01	0.001	0.001	0.04
N6	99.6	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	99.0	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	99.0	0.20	0.30	0.30	0.15	/	0.01	/	0.40

Nickel Foil Capabilities

Grade	Pure Nickel Strip 99.6% / 99.9%
Thickness	0.002 to 2.50 mm
Tolerances	+/- 5% (special tolerances is available)
Width	Up to 350mm wide
Coil size	Up to 80 kg without welds
Temper Ranges	Annealed to Full Hard

Nickel Foil Product Precision

Thickness	Thickness allowance	Burr height	Width scope and tolerance
			2≤w<10	10≤w<50	50≤w<100	100≤w<150	150≤w<200	200≤w
0.02≤t<0.05	±0.003	≤0.005	± 0.05	±0.10	±0.15	±0.20	±0.30	±0.50
0.05≤t<0.1	±0.005	≤0.01
0.1≤t<0.2	±0.008	≤0.015
0.2≤t<0.3	±0.012	≤0.02
0.3≤t<0.4	±0.015	≤0.03	± 0.10	±0.15	±0.25	±0.50	±0.80	±1.00
0.4≤t<0.6	±0.025	≤0.05
0.6≤t<0.8	±0.030	≤0.06	± 0.30	±0.40	±0.50	±0.50	±0.80	±1.00
0.8≤t<1.0	±0.040
1.0≤t<1.2	±0.050	≤0.08	± 0.50	±0.50	±0.80	±1.00	±1.00	±1.50
1.2≤t<1.4	±0.060
1.4≤t<1.7	±0.070	≤0.10
1.7≤t<2.0	±0.080

Pure Nickel Wire Diameter 0.025mm 99.99% Solid Pure Nickel Wire For Industry 12

Pure Nickel Wire Diameter 0.025mm 99.99% Solid Pure Nickel Wire For Industry 13

Pure Nickel Wire Diameter 0.025mm 99.99% Solid Pure Nickel Wire For Industry 14

Pure Nickel Wire Diameter 0.025mm 99.99% Solid Pure Nickel Wire For Industry 15
