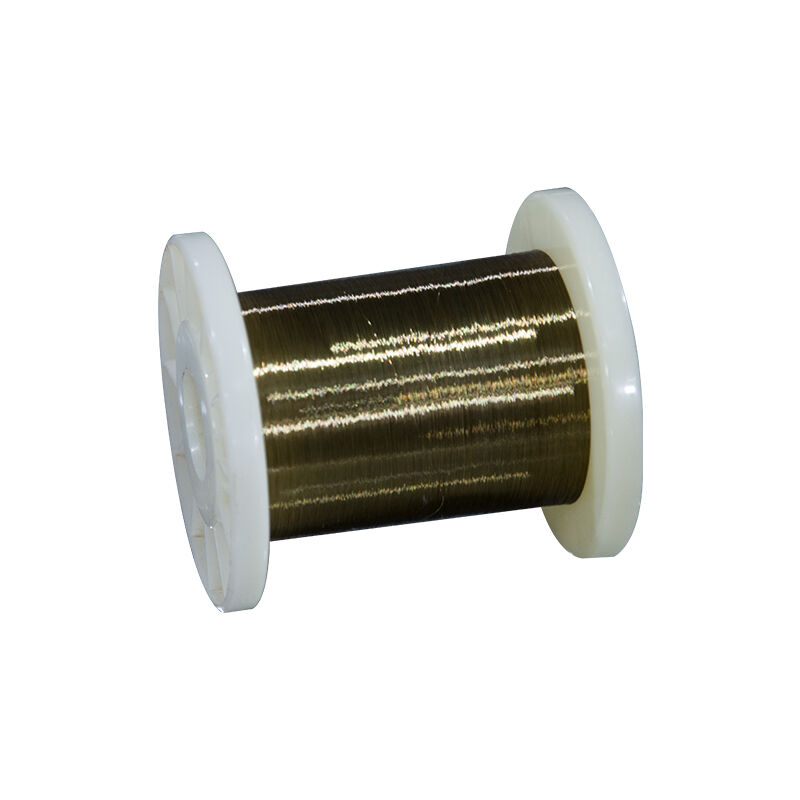

Enameled CuNi23 Wire with 23% Nickel Content and Low Temperature Coefficient of Resistance for Precision Resistors

Name: Enameled CuNi23 Wire with 23% Nickel Content and Low Temperature Coefficient of Resistance for Precision Resistors
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Cuni23
Price: 30.00 USD
Availability: InStock

Ürün Detayları

Menşe yeri: Çin

Marka adı: Tankii

Sertifika: ISO9001

Model numarası: Cuni23

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 10kg

Fiyat: 25-35USD/KG

Ambalaj bilgileri: Dava

Teslim süresi: 25-30 gün

Ödeme koşulları: Western Union,T/T

Yetenek temini: 5000kg/ay

En İyi Fiyatı Alın

Şimdi İletişime Geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                              Enameled CuNi23 alloy wire, Copper-nickel enamel-coated wire, Enamel-coated CuNi23 electrical wire


Direnç (20 ° C):	0,30 ±%5 µΩ·m	Maksimum Çalışma Sıcaklığı:	300°C - 400°C
Yoğunluk:	8.9 g/cm³	Çekme Dayanımı:	350 - 420 MPa

Direnç (20 ° C):	0,30 ±%5 µΩ·m
Maksimum Çalışma Sıcaklığı:	300°C - 400°C
Yoğunluk:	8.9 g/cm³
Çekme Dayanımı:	350 - 420 MPa

Açıklama

Enameled CuNi23 Wire with 23% Nickel Content and Low Temperature Coefficient of Resistance for Precision Resistors

Enameled CuNi23 Wire Enamel-coated Copper-nickel Alloy Wire

Enameled CuNi23 Wire is a copper-nickel binary alloy wire with approximately 23% nickel content and a low temperature coefficient of resistance, coated with insulating enamel for electrical isolation. It is widely used in precision resistors, heating cables, and low-voltage electrical components.

CuNi alloy grade: Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuMu12Ni, CuNi34, CuNi40 (6J40),CuNi44.
Copper nickel alloy sizes:
Wire: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.005*5.0-5.0*250mm
Bars: OD 4-100mm
Appicaton:
Low-voltage circuit breaker, thermal overload relay, electrical heating cable, electrical heating mats, snow melting cable and mats, ceiling radiant heating mats, Floor heating mats & Cables, Freeze protection cables, electrical heat tracers, PTFE heating cables, hose heaters, and other low-voltage electrical product
Size
Wires: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
Strips: 0.05*5.0-5.0*250mm Bars: D10-100mm

Characteristic	Resistivity ( 200C μΩ.m)	Max.working Temperature ( 0C)	Tensile Strength (Mpa)	Melting point (0C)	Density ( g/cm3)	TCR x10-6/ 0C (20~600 0C)	EMF vs Cu (μV/ 0C) (0~100 0C)
Alloy Nomenclature
NC005(CuNi2)	0.05	200	≥220	1090	8.9	<120	-12

Insulation Type	Temperature Class	Code Name	GB Code	ANSI Type
Polyurethane Enamelled Wire	130°C	UEW	QA	MW75C
Polyester Enamelled Wire	155°C	PEW	QZ	MW5C
Polyester-imide Enamelled Wire	180°C	EIW	QZY	MW30C
Polyester-imide/Polyamide-imide Double Coated	200°C	EIWH (DFWF)	QZY/XY	MW35C
Polyimide Enamelled Wire	220°C	AIW	QXY	MW81C

Enameled CuNi23 Wire with 23% Nickel Content and Low Temperature Coefficient of Resistance for Precision Resistors 0

Enameled CuNi23 Wire with 23% Nickel Content and Low Temperature Coefficient of Resistance for Precision Resistors 1

Enameled CuNi23 Wire with 23% Nickel Content and Low Temperature Coefficient of Resistance for Precision Resistors 2

Enameled CuNi23 Wire with 23% Nickel Content and Low Temperature Coefficient of Resistance for Precision Resistors 3

Enameled CuNi23 Wire with 23% Nickel Content and Low Temperature Coefficient of Resistance for Precision Resistors 4

Enameled CuNi23 Wire with 23% Nickel Content and Low Temperature Coefficient of Resistance for Precision Resistors 5
