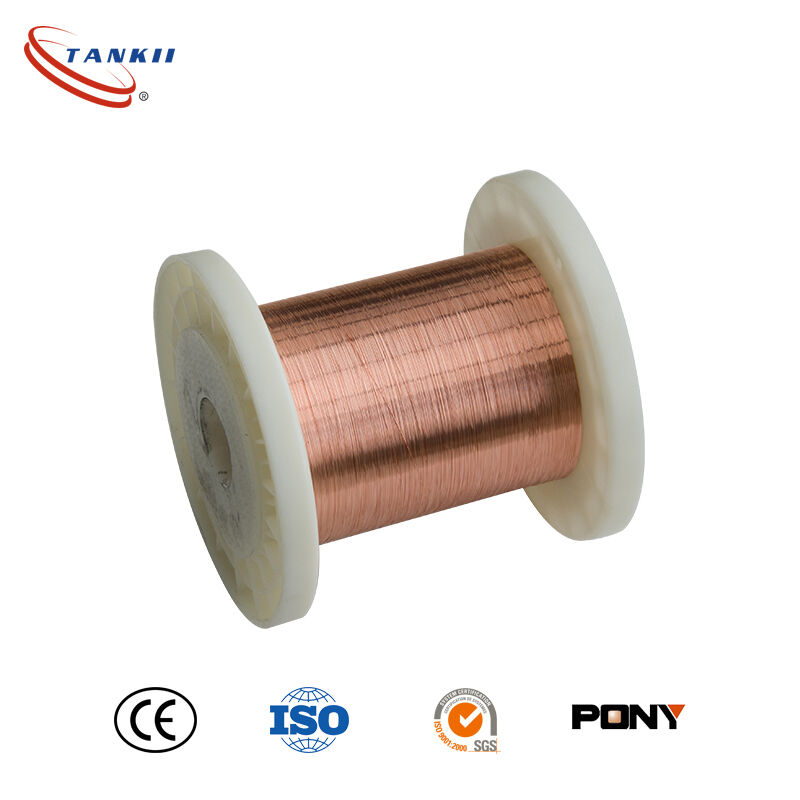

Enameled Copper Nickel Wire CuNi44 for Seat Heating with 240℃ High Temperature and Corrosion Resistance

Name: Enameled Copper Nickel Wire CuNi44 for Seat Heating with 240℃ High Temperature and Corrosion Resistance
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Cuni44
Price: 31.00 USD
Availability: InStock

Ürün Detayları

Menşe yeri: Çin

Marka adı: Tankii

Sertifika: ISO9001 Rohs

Model numarası: Cuni44

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 5 kg

Fiyat: pazarlık edilebilir

Ambalaj bilgileri: tahta sandık

Teslim süresi: 15-25gün

Ödeme koşulları: L/C, T/T, Western Union

Yetenek temini: Yılda 2000 Ton

En İyi Fiyatı Alın

Şimdi İletişime Geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                              Enameled Copper Nickel wire for seat heating, CuNi44 enamelled wire 240℃, Enamelled wire for high-temperature applications


Açıklama

Enameled Copper Nickel Wire CuNi44 for Seat Heating with 240℃ High Temperature and Corrosion Resistance

Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type of bare Alloy wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
44	1%	0.5	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	400ºC
Resisivity at 20ºC	0.49±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	-6(Max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled	680~1070 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC)	-43
Micrographic Structure	austenite
Magnetic Property	Non

Application of Constantan
Constantan is a copper-nickel alloy that contains specific minor amounts of additional
elements to achieve precise values for the temperature coefficient of resistivity. Careful
control of melting and conversion practices results in a very low level of pinholes at
ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.
