TANKII 0.2*5mm Tailor-Made Flat Wire K Type Thermocouple Ribbon Wire Used For Sensor Accessories
TANKII 0.2*5mm Tailor-Made Flat Wire K Type Thermocouple Ribbon Wire Used For Sensor Accessories
Quick Details
About thermocouple flat wires, type K (chromel, alumel)
It refers to the head or tail connector of the finished thermocouple being made into a flat plug shape for quick insertion and removal.
Structure: Usually an armored thermocouple; the internal thermocouple wire is still round, but the external junction box or plug is flat.
- Advantages: Small probe diameter, flexible, suitable for installation in narrow, curved pipes or equipment.
Tankii 's Types of Thermocouples:
What differentiates one thermocouple from another is the metals in its two wires: the positive leg and the negative leg. Because each thermocouple type has a different pairing, they differ in temperature limits, process conditions (inert, oxidizing, reducing atmospheres, heavy vibration), and so on.
Thermocouple Types and Temperature Range
|
Conductor Name
|
Thermocouple
Type
|
Grade |
Temperature range
℃
|
Allowable Tolerance /℃ |
| PtRh30-PtRh6 |
B |
Ⅱ |
600~1700 |
±0.25% t |
| Ⅲ |
600~800 |
±4 |
| 800~1700 |
±0.5%t |
| PtRh13-Pt |
R |
Ⅰ |
0~1100 |
±1 |
| 1100~1600 |
±[1+(t－1100) ×0.3％] |
| Ⅱ |
0~600 |
±1.5 |
| 600~1600 |
±0.25% t |
| PtRh10-Pt |
S |
Ⅰ
|
0~1100 |
±1 |
| 1100~1600 |
±[1+(t－1100) ×0.3％] |
|
Ⅱ
|
0~600 |
±1.5 |
| 600~1600 |
±0.25% t |
| NiCr-Ni |
K |
Ⅰ |
-40~1100 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~1300 |
±2.5℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±2.5℃ or ±1.5%t |
| NiCrSi-NiSi |
N |
Ⅰ |
-40~1100 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~1300 |
±2.5℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±2.5℃ or ±1.5%t |
| NiCr-CuNi (Constantan) |
E |
Ⅰ |
-40~1100 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~1300 |
±2.5℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±2.5℃ or ±1.5%t |
| Fe-CuNi (Constantan) |
J |
Ⅰ |
-40~750 |
±1.5℃ or ±0.4%t |
| Ⅱ |
-40~750 |
±2.5℃ or ±0.75%t |
| Cu-CuNi (Constantan) |
T |
Ⅰ |
-40~350 |
±0.5℃ or ±0.4%t |
| Ⅱ |
-40~350 |
±1.0℃ or ±0.75%t |
| Ⅲ |
-200~40 |
±1.0℃ or ±1.5%t |
The Delivery and Packing:

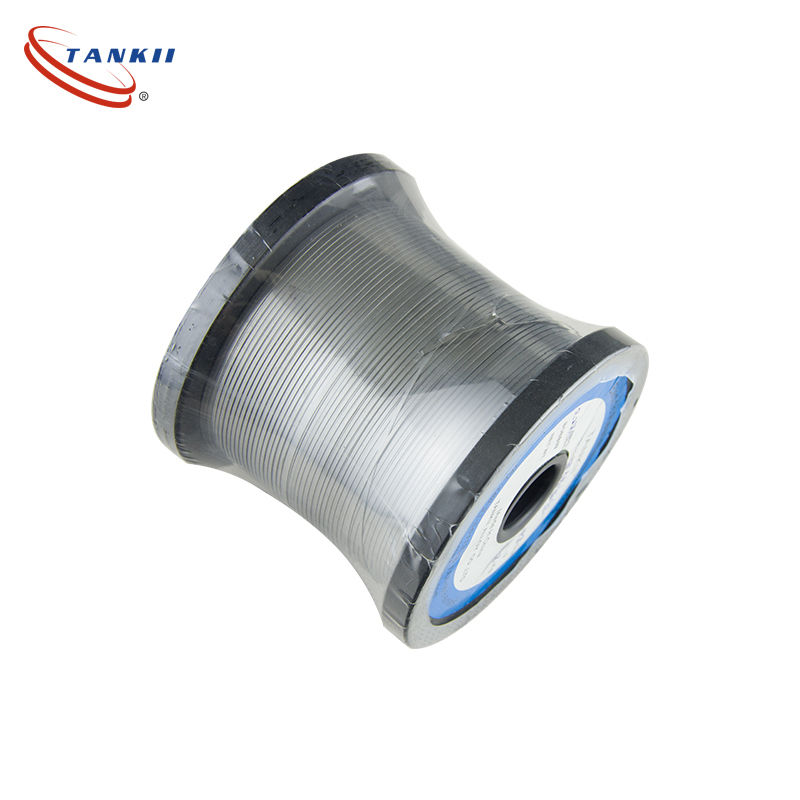

1. Packaging Details: On spool, with plastic film wrapped and carton package.
2. Delivery Detail: 7 ~25 days, as the order quantity.
More pictures of thermocouple flat wire:
Thermocouple Round wire:
Thermocouple Stranded wire :
Thermocouple Strip:
About us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wire, thermocouple cable, thermocouple connector, and other thermocouple products.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Welcome to call me or email to me for more info on thermocouple wire/rod/bar/strip.
